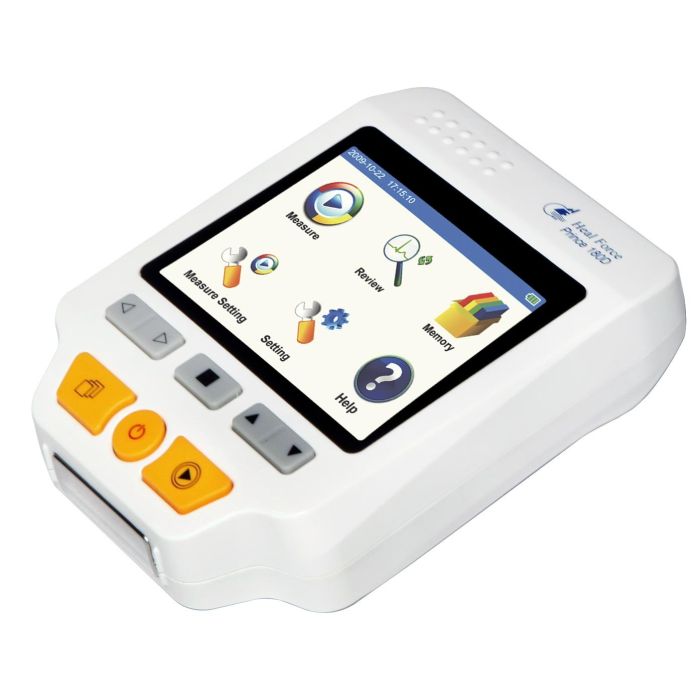

Creative Medical PC-80D Colour Handheld ECG Monitor With Continuous Mode

The amazing PC-80D home easy ECG monitor that can help monitor and record suspected cardiac conditions, and help show your specialist exactly what is happening when you're not under their supervision.
Typically many heart conditions only show up at irregular times so this is the ideal piece of equipment to discover what is really happening and get the treatment you need.

It's portable, and easy to operate with various included options to allow for easy instant measurement or continuous recording with all the required equipment supplied in one kit.

You can simply hold it in your hands to obtain a single channel ECG display which can be recorded and printed, or you can attach the included lead wires and electrodes to your skin to obtain a 3-channel ECG.
Taking this one step further you can use optional limb clamps instead of the adhesive electrodes, and there's also an optional SPO2 sensor to turn it into an oximeter at the same time!


Features:
Portable, easy to operate
Full colour OLED display
Advanced measuring technologies provide steady and accurate ECG waveforms
Anaylsis and reporting of 19 suggested results
PC data management software for data transmission and analysis
Continuous monitoring option -
7 hours continuous monitoring with 3-channel; 16 hours continuous monitoring with mono-channel
Chest lead & limb lead measuring using supplied leads & electrodes
Limb "clip" electrodes are available as an optional accessory - can use instead of adhesive electrodes
Optional SPO2 sensor for additional oximeter function - plugs into the back of the device and records on the display and into the memory


Includes:
4-lead ECG wires (to provide a 3-channel ECG)
Pack of 25 skin electrodes to use with 4-lead wires
Batteries (4 x  alkaline AA)
AC mains adaptor
Instruction manual for ECG monitor and separate manual for analysis software
Zip-up hard protective case to store monitor and accessories, with carrying handle
Free PC software download



Flexible
Various methods to take measurements:
1. 2 hands
2. 1 hand and limb
3. 1 hand and chest (the best option when not using external lead wire)
4. Chest electrodes only (single channel, uses 3 of the leads/electrodes)
5. Limb electrodes only (enables 3-channel recording using 4 electrodes) - optional accessory with limb clamp kit

Cardiac events often occur at irregular times, and it's common for them to occur when you are not at the hospital or doctor's. Even if you have a machine on loan for 24 hours, we often hear that customers telling us that their condition didn't occur on that day!
The PC-80D enables you to capture information and supply it to your doctor or cardiologist.


Specification:
Signal input: 3 embedded metal electrodes or external lead wire (4 leads)
Lead selection & measuring modes:
1. quick measurement by embedded electrodes
2. measurement by external electrodes with 3-lead wires (single channel for lead I,II or III) or 4 lead wires (3 simultaneous channels for lead I, II and III)
ECG Bandwidth: 0.05~40Hz (enhanced mode), 0.5~40Hz (normal mode)
Internal noise level: <=30microVp-p
Heart rate range: 30~240bpm
Heart rate accuracy: +/- 2bpm or +/-2%, whichever is greater
Display scale: 5mm/mV +/-10%
CMRR: >=60dB
Waveform sweeping speed: 20mm/s +/-10%
Measurement time: 30 seconds per test
Suggested results: 19 types of waveform

Display
Display mode: Colour LCD display
Resolution 320 x 240
Screen size: 70.08 x 52.56 mm

General
Dimensions: 130mm (L) x 98mm (W) x 36mm (H)
Net weight: 400g without batteries
Power supply: 4 x AA batteries, or AC mains - AC adaptor included in package, for UK or European sockets
Voltage: DC 5.0V / 1.0A
