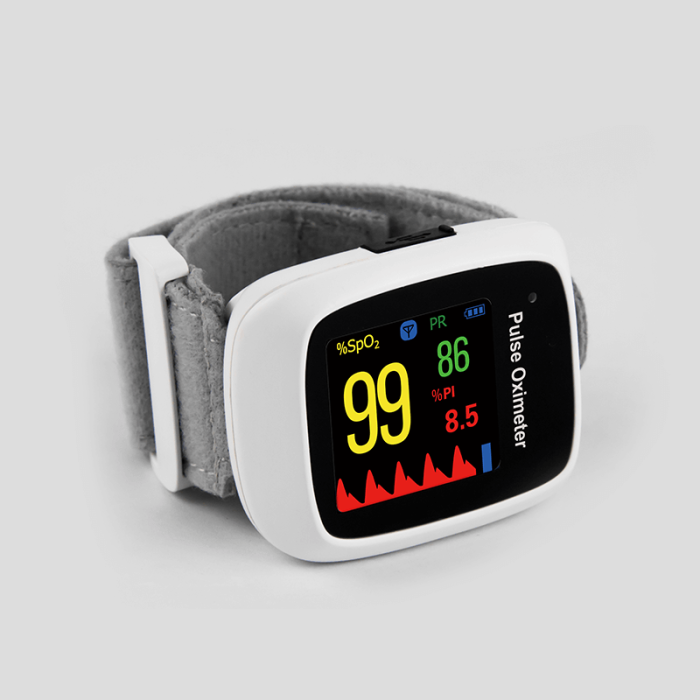

Creative Medical AP-10 Wrist Pulse Oximeter Sleep Screener With Adult Fingerstall

Wrist Oximeter with Sleep Screener measuring SpO2, PR, Respiration Rate, Air Flow and snoring in Adult and Paediatric Patients
Designed for home use or hospitals and clinics
Visible audio and
 vibration alarm
Accurate and reliable monitoring against low perfusion and weak pulse signal
Data can be exported to PC using the USB Cable (Software Download required) enabling printout of data
Bluetooth v4.0 function allowing for real time viewing and storage of live data through the free Vihealth app, compatible with Android phones/tablets and Windows PC
Body movement can be recorded and reviewed in the software

Power saving mode with display off
Display brightness adjustable

Adjustable Audio and Visual SpO2 and PR alert limits
Equipped with standard finger probe sensor for adults
Data storage of up to 160 hours
CE and FDA approved

Additional Information:
SDK & communication protocols available for integration purposes
Built in rechargeable battery offers up to 18 hours of use (when display is off)
Easy to clean – Oximeter and sensor can be easily wiped down between uses
Supplied with Adult Soft Sensor, Air Flow Module and Oral/Nasal Cannula and charging adapter
2 year warranty on main unit
The data management software allows users to manage, review, and analyze the records in trends, graphs, and statistics. The printout of the reports provides an intuitive view of pre-screening sleep studies
Screen: 1.44-inch LED display
Dimensions: 56mm x 44mm x 16mm
Net weight: 40g

SpO2(blood oxygen saturation):
Transducer: Dual-wavelength LED
Display range: 0~100%
Measuring accuracy: Arms≤3% (range from 70% to 100%)

Pulse Rate:
Measuring range: 30bpm~250bpm
Measuring accuracy: ±2bpm or ±2% (whichever is greater)
Resolution: 1bpm

Perfusion Index (PI) Display:
PI display range: 0.2%~20%

Preset Alert Limits:
SpO2 low alert limit: 85%
PR(Pulse Rate) high alert limit: 120bpm
PR(Pulse Rate) low alert limit: 50bpm

Oral-nasal Air Flow
:
Measuring method
: Oral/nasal airflow pressure

Airflow waveform
: Wireless transmitting rate of 50Hz; Data recording rate of 25Hz

Snore waveform
: Wireless transmitting rate of 50Hz; Data recording rate of 25Hz


Respiration Rate
:
Measuring range
: 6~60rpm

Measuring accuracy: ±2rpm or ±5%(whichever is greater)


Power Supply

:
Battery voltage: 3.70VDC

Operating current
: ≤40mA
Working time(display off)
: >I8hours

Charger: 100-240VAC input, 5VDC/I.2A output


Wireless Connections:
Frequency band
: 2.4GHz
Bluetooth version: Bluetooth V4.0 and above

Data Storage and Upload
:
Data Storage: up to 160 hours
Data Upload: USB interface or wireless(Bluetooth)


Operating Environment
:
Operating temperature: 5~40℃

Operating humidity: 15%~93%

Atmospheric pressure: 70kPa~106kPa


Package Details:
Package Weight: 0.50 kg
Package Size: 25.4cm x 20.5cm x 12.5cm

Standard Accessories Packing List:
1 x Main Unit of AP-10 Wrist Pulse Oximeter
1 x SpO2 sensor with adult finger silicone sensor
1 x AC power adapter
1 x USB data cable
1 x Wristband
1 x User manual
